| Brand Name: | SMS |
| Model Number: | CPC40 |
| MOQ: | 10 Pcs |
| Price: | Negotiable |
| Packaging Details: | WOODEN BOX OR NETURAL |
| Payment Terms: | D/A, D/P, L/C, T/T, Western Union, MoneyGram |

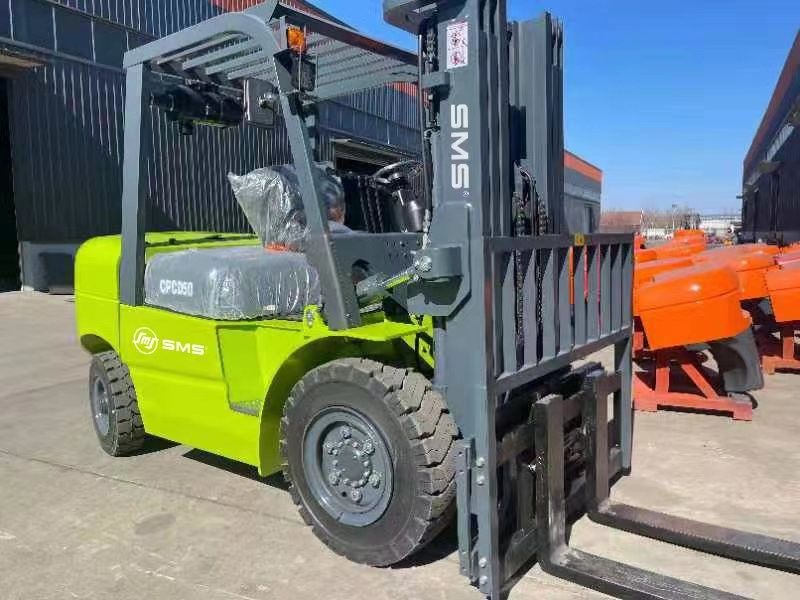

China Diesel Forklifts CPC40 K-Series Diesel Forklift 3 Tons 5 Tons 10 Tons
| Forklift Mainly Technical Parameters | |||
| 技术参数 | Technical Parameters | Unit | Ref Details |
| 额定载荷 | Rated Lifting Load | kg | 4000 |
| 载荷中心距 | Load Center Distance | mm | 500 |
| 自由起升高度 | Free Lifting Height | mm | 150 |
| 全长(货叉/不带货叉) | Overall Length(with fork/without fork) | mm | 4000/2930 |
| 全宽 | Width | mm |
1290 |
| 全高(护顶架) | Overhead Guard Height | mm | 2180 |
| 轴距 | Wheelbase | mm | 1900 |
| 最小离地间隙(门架处) | Minimum Ground Clearance | mm | 140 |
| 门架倾角(前/后) | Mast Tilt Angle (Front/Rear) | % | 6°/12° |
| 轮胎尺寸(前) | Tire No (Front) | 250-15-16PR | |
| 轮胎尺寸(后) | Tire No (Rear) | 7.00-12-12PR | |
| 最小转弯半径外侧 | Minimum Turning Radius(outer Side) | mm | 2710 |
| 最小直角通道宽度 | Minium Right Angle Aisle Width | mm | 4750 |
| 货叉尺寸(长×宽×厚) | Fork Size |
mm |
1070/150/50 |
| 最大行驶速度(满载/空载) | Maximum Working Speed(Full-load/No-load) | km/h | 19/19 |
| 最大起升速度(满载/空载) | Maximum Lifting Speed(Full-load/No-load) | mm/s | 340/380 |
| 最大爬坡度(满载/空载) | Maximum Gradeability(Full-load/No-load) | % | 15/20 |
| 整机重量 | Total Weight | kg | 4950 |
| 发动机 | Engine Model | Quanchai/4C2-50V31 |
Advantage of Choosing SMS Forklift:
1.Simple appearance, generous and nice.
2.New steering wheel adjustment mechanism, improve the comfort of operation and adjustment reliability.
3.The new design of Intake system, keep the engine far away from dust and improve engine performance, make it work longer time.
4.The driver has a wider field of vision with new mast design.
5.Reliable digital instrumentation facilitates driver operation and control of vehicle conditions.
6.Optional casting steering alxe, lower maintenance cost.
|
|
