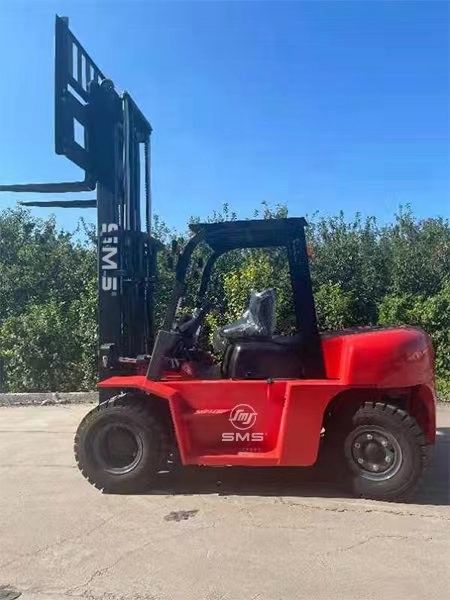

CPC38 Quanchai Engine Diesel Forklift Truck 3 Tons 5 Tons 10 Tons

Certification
China SMS Co., Ltd. certification
I'm Online Chat Now

CPC38 Quanchai Engine Diesel Forklift Truck 3 Tons 5 Tons 10 Tons

CPC38 Quanchai Engine Diesel Forklift Truck 3 Tons 5 Tons 10 Tons
CPC38 Quanchai Engine Diesel Forklift Truck 3 Tons 5 Tons 10 Tons

Large Image :  CPC38 Quanchai Engine Diesel Forklift Truck 3 Tons 5 Tons 10 Tons

Product Details:
Place of Origin: CHINA
Brand Name: SMS
Certification: ISO9001-2008
Model Number: CPC38
Payment & Shipping Terms:
Minimum Order Quantity: 10 Pcs
Price: Negotiable
Packaging Details: WOODEN BOX OR NETURAL
Delivery Time: 5-7 DAYS
Payment Terms: D/A, D/P, L/C, T/T, Western Union, MoneyGram
Supply Ability: 20 SETS PER MONTH

CPC38 Quanchai Engine Diesel Forklift Truck 3 Tons 5 Tons 10 Tons

Description
Model No: CPC38 Certificate Of Original: CHINA
Type: Diesel Length: 3963MM/2893MM
Width: 1225MM Height: 2090MM
Wheelbase: 1700MM Engine: Quanchai4C2-50C41/According To Customer's Request
Color: Red/Orange/Green/others Weight: 4800KG
High Light:

CPC38 Diesel Forklift Truck

,

Quanchai Engine Diesel Forklift Truck

,

3 Tons Diesel Forklift Truck

CHINA Diesel Forklifts CPC38 K-Series Diesel Forklift 3 Tons 5 Tons 10 Tons



Forklift Mainly Technical Parameters
技术参数 Technical Parameters  Unit  Ref Details
额定载荷 Rated Lifting Load  kg  3800
载荷中心距 Load Center Distance  mm 500
自由起升高度 Free Lifting Height  mm 160
全长(货叉/不带货叉) Overall Length(with fork/without fork) mm 3963/2893
全宽 Width  mm

1225

全高(护顶架) Overhead Guard Height  mm 2090
轴距 Wheelbase  mm 1700
最小离地间隙(门架处) Minimum Ground Clearance  mm 135
门架倾角(前/后) Mast Tilt Angle (Front/Rear)  % 6°/12°
轮胎尺寸(前) Tire No (Front)   28×9-15-14PR
轮胎尺寸(后) Tire No (Rear)   6.5-10-10PR
最小转弯半径外侧 Minimum Turning Radius(outer Side) mm 2710
最小直角通道宽度 Minium Right Angle Aisle Width  mm 4720
货叉尺寸(长×宽×厚) Fork Size

mm

1070/150/50

最大行驶速度(满载/空载) Maximum Working Speed(Full-load/No-load) km/h 19/19
最大起升速度(满载/空载) Maximum Lifting Speed(Full-load/No-load) mm/s  340/380
最大爬坡度(满载/空载) Maximum Gradeability(Full-load/No-load) % 15/20
整机重量 Total Weight  kg 4800
发动机 Engine Model    Quanchai/4C2-50C41





Advantage of Choosing SMS Forklift:

1.Simple appearance, generous and nice.

2.New steering wheel adjustment mechanism, improve the comfort of operation and adjustment reliability.

3.The new design of Intake system, keep the engine far away from dust and improve engine performance, make it work longer time.

4.The driver has a wider field of vision with new mast design.

5.Reliable digital instrumentation facilitates driver operation and control of vehicle conditions.

6.Optional casting steering alxe, lower maintenance cost.
