Diesel Engine Forklift
>

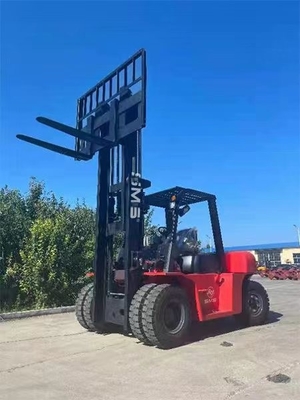

CPC35 K-Series Diesel Engine Forklift 3.5Tons For Warehouse

CPC35 K-Series Diesel Engine Forklift 3.5Tons For Warehouse

Brand Name: SMS
Model Number: CPC35
MOQ: 10 Pcs
Price: Negotiable
Packaging Details: WOODEN BOX OR NETURAL
Payment Terms: D/A, D/P, L/C, T/T, Western Union, MoneyGram
Detail Information
Place of Origin:
CHINA
Certification:
ISO9001-2008
Model No:
CPC35
Certificate Of Original:
CHINA
Type:
Diesel
Length:
3763MM/2693MM
Width:
1225MM
Height:
2090MM
Wheelbase:
1700MM
Engine:
Quanchai4C2-50V32/According To Customer's Request
Color:
Red/Orange/Green/others
Weight:
4500KG
Supply Ability:
20 SETS PER MONTH
High Light:

CPC35 Diesel Engine Forklift

,

3.5Tons Diesel Engine Forklift

,

3.5 tonne forklift

Product Description

China Diesel Forklifts CPC35 K-Series Diesel Forklift 3.5Tons



Forklift Mainly Technical Parameters
技术参数 Technical Parameters  Unit  Ref Details
额定载荷 Rated Lifting Load  kg  3500
载荷中心距 Load Center Distance  mm 500
自由起升高度 Free Lifting Height  mm 160
全长(货叉/不带货叉) Overall Length(with fork/without fork) mm 3763/2693
全宽 Width  mm

1225

全高(护顶架) Overhead Guard Height  mm 2090
轴距 Wheelbase  mm 1700
最小离地间隙(门架处) Minimum Ground Clearance  mm 135
门架倾角(前/后) Mast Tilt Angle (Front/Rear)  % 6°/12°
轮胎尺寸(前) Tire No (Front)   28×9-15-14PR
轮胎尺寸(后) Tire No (Rear)   6.5-10-10PR
最小转弯半径外侧 Minimum Turning Radius(outer Side) mm 2420
最小直角通道宽度 Minium Right Angle Aisle Width  mm 4260
货叉尺寸(长×宽×厚) Fork Size

mm

1070/125/50

最大行驶速度(满载/空载) Maximum Working Speed(Full-load/No-load) km/h 19/19
最大起升速度(满载/空载) Maximum Lifting Speed(Full-load/No-load) mm/s  330/370
最大爬坡度(满载/空载) Maximum Gradeability(Full-load/No-load) % 15/20
整机重量 Total Weight  kg 4500
发动机 Engine Model    Quanchai/4C2-50V32





Advantage of Choosing SMS Forklift:

1.Simple appearance, generous and nice.

2.New steering wheel adjustment mechanism, improve the comfort of operation and adjustment reliability.

3.The new design of Intake system, keep the engine far away from dust and improve engine performance, make it work longer time.

4.The driver has a wider field of vision with new mast design.

5.Reliable digital instrumentation facilitates driver operation and control of vehicle conditions.

6.Optional casting steering alxe, lower maintenance cost.
